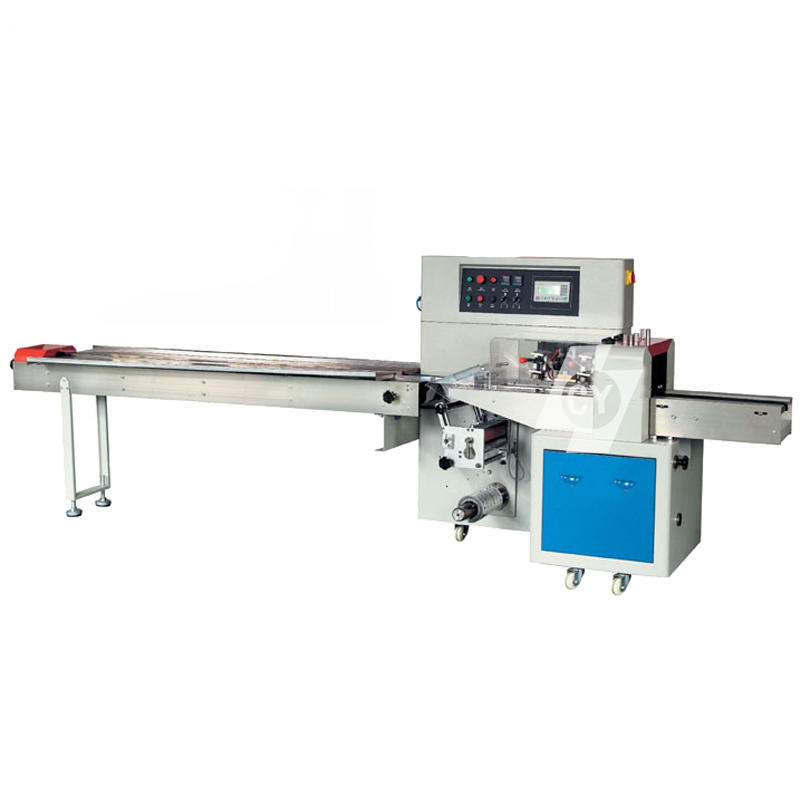

Mosquito incense/Noodles/Towels horizontal flow packing machine CY-500X CY-600X, Suitable for packaging soft, strip and unorganized objects like towels, tissues, noodles, egg rolls, sausages, fish, ice-lollipop, soft candies, biscuits, fresh fruits, paper boxes, plates etc. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film. Interface features easy and quick setting and operation. Self failure diagnosis and clear failure display, positioned stop function, without sticking knife or wasting film, high sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy. Use simple driving system, reliable working and convenient maintenance.
Product Description
| Technical Characteristics | Technical Parameter | |
| Type | CY-500X | CY-600X |
| Film width | Max 500mm | Max 600mm |
| Bag length | 140-330mm | 180-450mm |
| Bag width | 50-230mm | 50-200mm |
| Product height | Max 60mm | Max 100mm |
| Film roll diameter | Max. 320mm | |
| Packaging speed | 40-230bag/min | |
| Power | 220V 50/60Hz 2.6KW | |
| Machine size | (L)4020x(W)820x(H)1320mm | (L)4020x(W)870x(H)1320mm |
| Machine weight | 900kg | 900kg |
| End sealing form | Flat type or Zig zag type | |
| Date printer | Ink roll date printer(standard) | |
| Hole/Euro slot | As per customer requirement customize | |
| Link-bag device | As per customer need | |
Packing Samples
