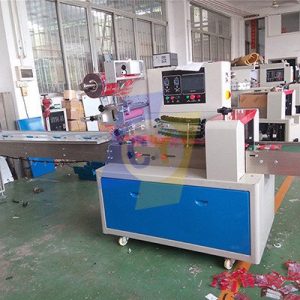

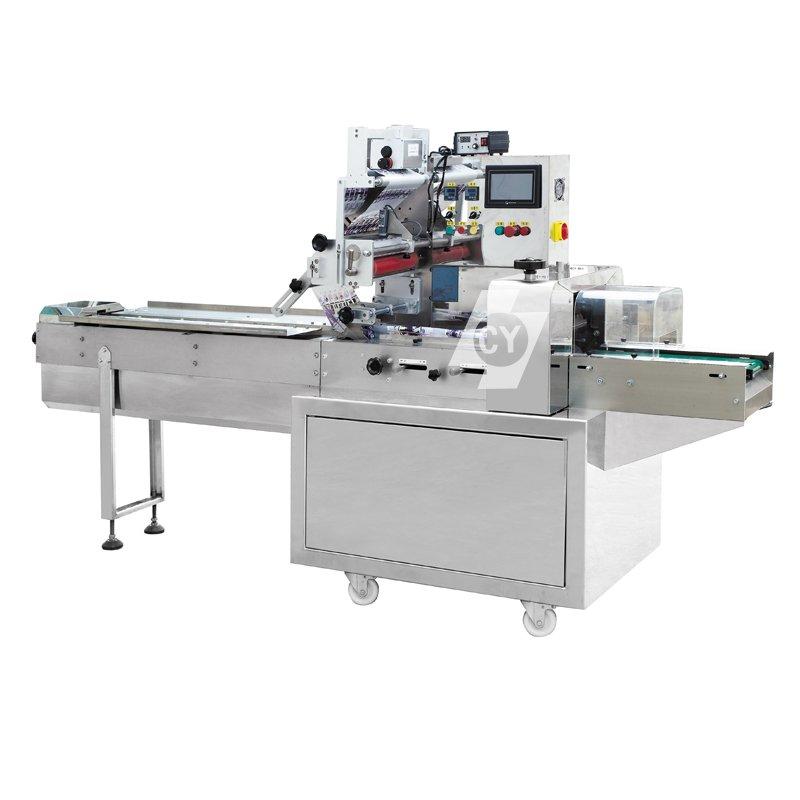

CY-350B 350D Rotary Pillow Packing Machine

Model NumberCY-350B 350D
Brand NameChenYuan
OriginalFoshan, China
Control system byPLC
ApplicationSuitable for packaging various kind of vegetables, fruits, noodles, gloves, tortillas, such as cucumber, tortillas, spaghetti,chili pepper, carrots, celery, cushaw, cabbage,eggplant,tomato,potato etc
Packaging Materiallaminated film
Minumum Order1 Set
Price TermFOB, CIF, EXW, CFR etc
Payment TermsT/T, L/C, Western Union, MoneyGram, Cash etc
Packaging DetailsStandard Exported Wooden Case
Delivery time25-30 days after receipt the payment.
After-sales Service ProvidedEngineers available to service machinery overseas available

CY-350B 350D Rotary Pillow Packing MachineCY-350B 350D Rotary Pillow Packing MachineCY-350B 350D Rotary Pillow Packing MachineCY-350B 350D Rotary Pillow Packing Machine

CY-350B 350D rotary pillow packing machine, widely used in packing arious kinds of regular objects like biscuits, pies, chocolates, instant noodles, drugs, daily appliances, industrial parts, paper boxes, plates etc.

Features of flow packing machine

  1. The machine temperature independent PID control, more suitable for packaging different materials.

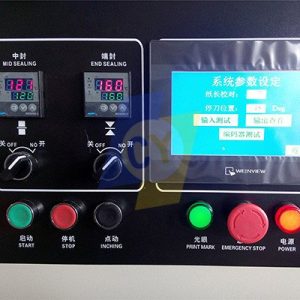

  2. Interface features easy and quick setting and operation.
  3. dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
  4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy
  5. machine have self failure diagnosis, clear failure display.
  6. Simple driving system,reliable working,convenient maintenance,easy for machine function adjusting.

Optional device for the flow packing machine

  1. stainless steel body (carbon steel body for standard)
  2. date printer
  3. round hole or Euro hole device as per customer’s requirement
  4. air filling device
  5. nitrogen making machine
  6. gusset device

CY-350B 350D Rotary Pillow Packing Machine CY-350B 350D Rotary Pillow Packing Machine

CY-350B 350D Rotary Pillow Packing Machine CY-350B 350D Rotary Pillow Packing Machine

  Product Information

Technical CharacteristicsTechnical Parameter
TypeCY-350BCY-350D
Film widthMax 350mm
Bag length65-190mm or 120-280mm90-220mm or 150-330mm
Bag width50-160mm
Product heightMax  40mmMax 60mm
Film roll diameterMax. 320mm
Packaging speed40-230bag/min,can be adjusted
External diameter of film rollmax 350mm
Internal diameter of film roll76mm
Power220V 50/60Hz 2.6KW
Machine size(L)4020x(W)770x(H)1450mm
Machine weight550kg
End sealing formFlat type or Zig zag type(opitional)
  Packing Samples

CY-350B 350D Rotary Pillow Packing Machine CY-350B 350D Rotary Pillow Packing Machine CY-350B 350D Rotary Pillow Packing Machine CY-350B 350D Rotary Pillow Packing Machine CY-350B 350D Rotary Pillow Packing Machine CY-350B 350D Rotary Pillow Packing Machine
